KAPPA

700H

Low Pressure Molding Machine KAPPA 700H

The KAPPA 700H low pressure molding machine offers a side injection shuttle table with built-in tank.

Product Features
at a Glance

R

Touchscreen

 Seven-inch touchscreen, multilanguage operator PLC
R

Built-in tank

7L melt tank
R

Thermal control zones

Two thermal control zones for precise melt control
R

Operator safety

Equipped with a light curtain and dual-palm buttons for operator safety
R

Shuttle station

 C-frame design with shuttle station
R

Ejection system

For easy part removal

Full Specifications for Low Pressure Molding Machine KAPPA 700H

For more technical details and specifications, please, download the Technical Data Sheet for KAPPA 700H low pressure molding machine.

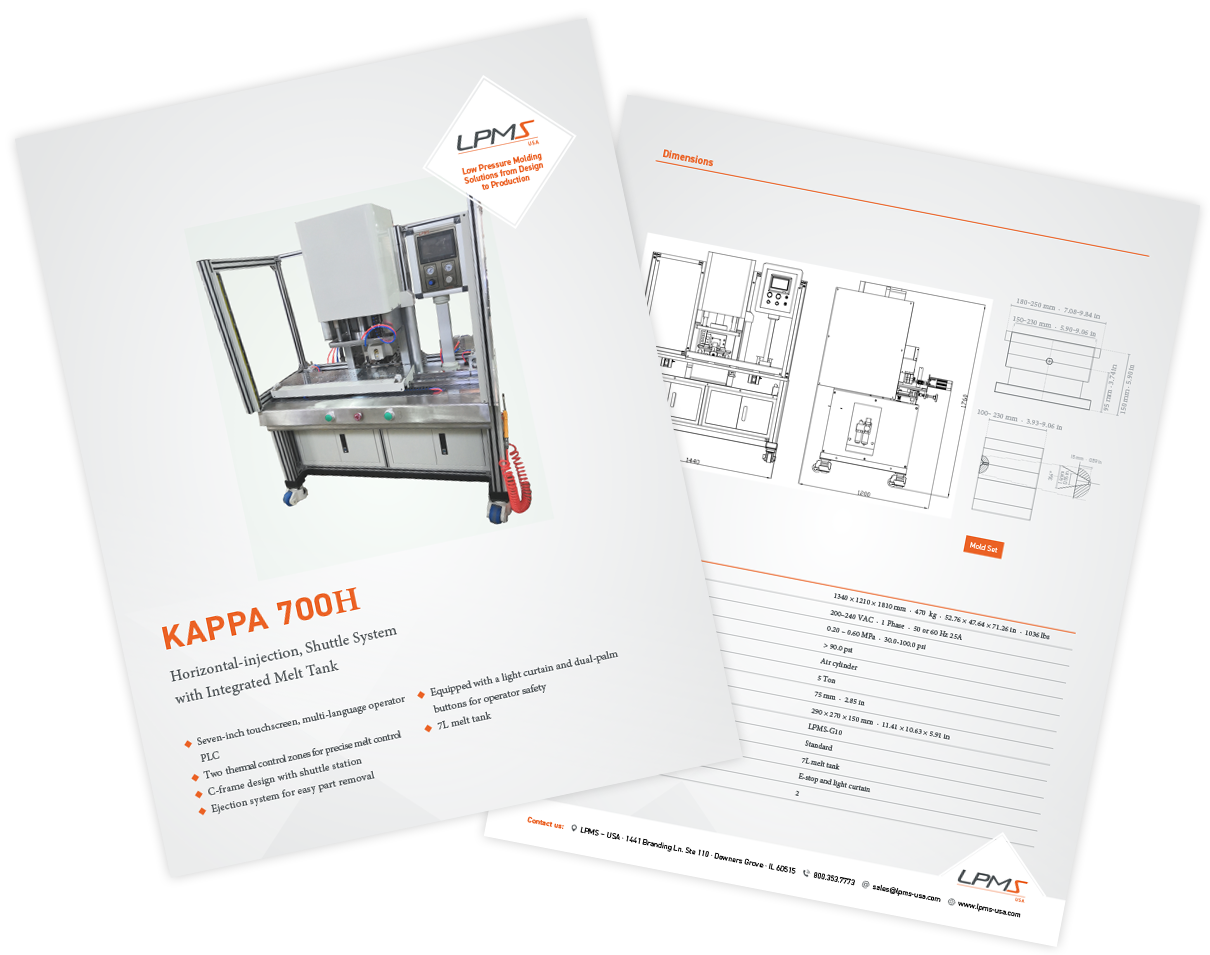

Technical Data Sheet KAPPA 700H Low Pressure Molding Machine

KAPPA 700H
Specifications

Machine Size 1340 × 1210 × 1810 mm · 470 kg · 52.76 × 47.64 × 71.26 in · 1036 lbs
Electricity 200–240 VAC · 1 Phase · 50 or 60 Hz 25A
Air Pressure 0.20–0.60 MPa · 30.0–100.0 psi
Air Required > 90.0 psi
Clamping Method Air cylinder
Clamping Force 5 Ton
Clamping Stroke 75 mm · 2.85 in
Max. Mold Size 290 × 270 × 150 mm · 11.41 × 10.63 × 5.91 in
Nozzle LPMS-G10
Light Curtain Standard
Melt Tank Quantity / Volume 7L melt tank
Safety Feature E-stop and light curtain
Temperature Control Zones 2
