BETA

800HMG

Low Pressure Molding Machine BETA 800HMG

In addition to vertical injection, the Beta 800HMG low pressure molding machine offers a dual channel system with two external melt tanks.

Product Features
at a Glance

R

Touchscreen

Seven-inch touchscreen, multilanguage operator PLC
R

High-volume melt tanks

Two separate high-volume melt tanks
R

Thermal control zones

Five thermal control zones for precise melt control
R

Post die set

Four post die set for large parts
R

Injection guns

Two independent injection guns
R

Operator safety

Equipped with a light curtain, safety door and dual-palm buttons for operator safety

Full Specifications for Low Pressure Molding Machine BETA 800HMG

For more technical details and specifications, please, download the Technical Data Sheet for BETA 800HMG low pressure molding machine.

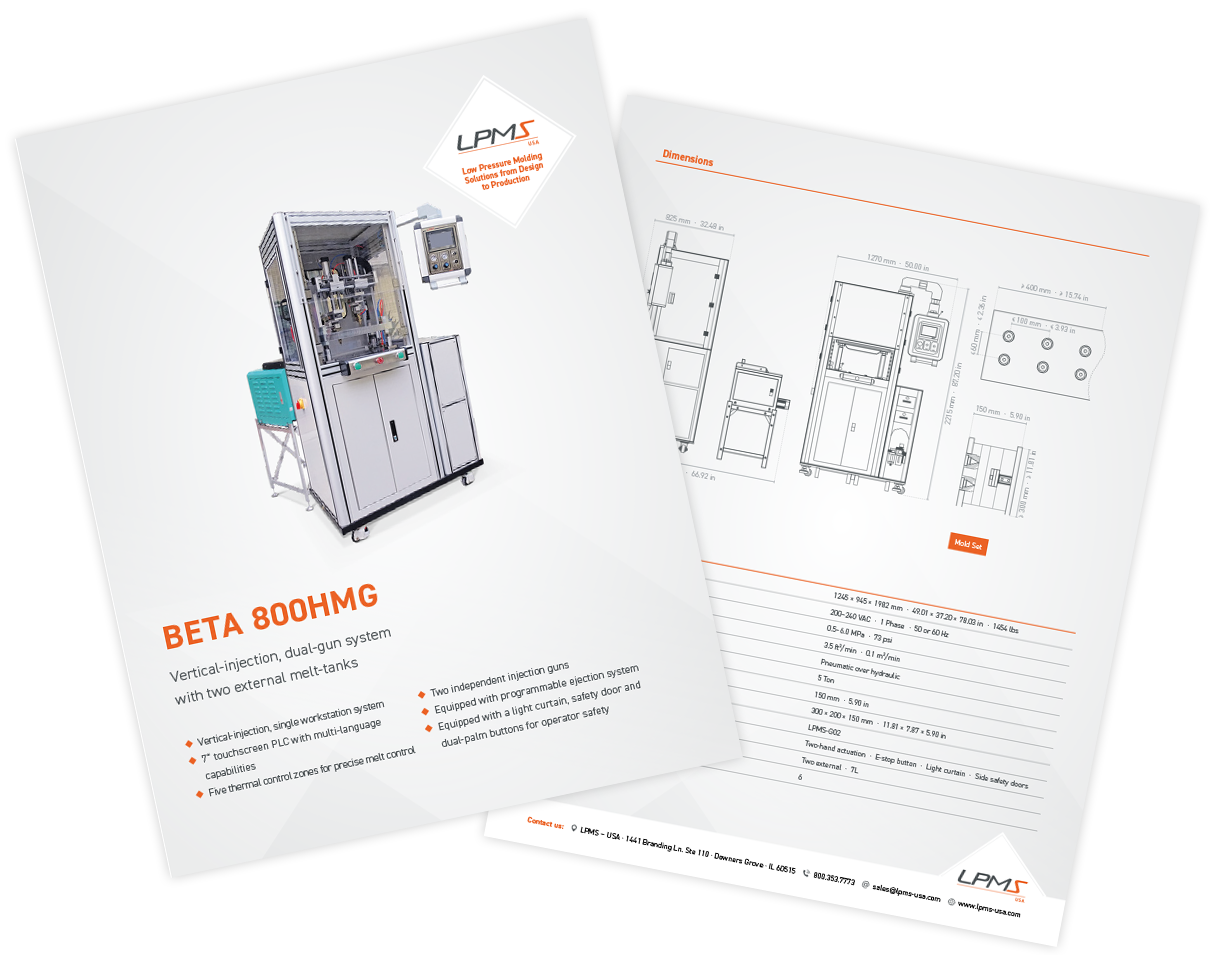

Technical Data Sheet BETA 800HMG Low Pressure Molding Machine

BETA 800HMG
Specifications

Machine Size 1245 × 945 × 1982 mm · 49.01 × 37.20 × 78.03 in · 1454 lbs
Electricity 200–240 VAC · 1 Phase · 50 or 60 Hz · 50 Amp
Air Input 30–100 psi
Air Required > 90 psi
Clamping Method Pneumatic over hydraulic
Clamping Force 5 Tons
Clamping Stroke 150 mm · 5.90 in
Max. Mold Size 380 × 270 × 150 mm
Platen Size 380 × 270 mm
Nozzle LPMS-G08
Safety Features Two-hand actuation · E-stop button · Light curtain · Side safety doors
Melt Tank Quantity / Volume Two external · 7L
Temperature Control Zones 6
