KAPPA

1000H

Low Pressure Molding Machine KAPPA 1000H

In addition to horizontal-injection, the KAPPA 1000H low pressure molding machine offers a single-station system with external melt tank.

Product Features
at a Glance

R

High-volume melt tank

Horizontal-injection, single-workstation system with external high-volume melt tank
R

Thermal control zones

Three thermal control zones for precise melt control
R

Touchscreen

Seven-inch touchscreen, multilanguage operator PLC
R

Ejection system

For easy part removal
R

Operator safety

Equipped with a light curtain, safety door and dual-palm buttons for operator safety

Full Specifications for Low Pressure Molding Machine KAPPA 1000H

For more technical details and specifications, please, download the Technical Data Sheet for KAPPA 1000H low pressure molding machine.

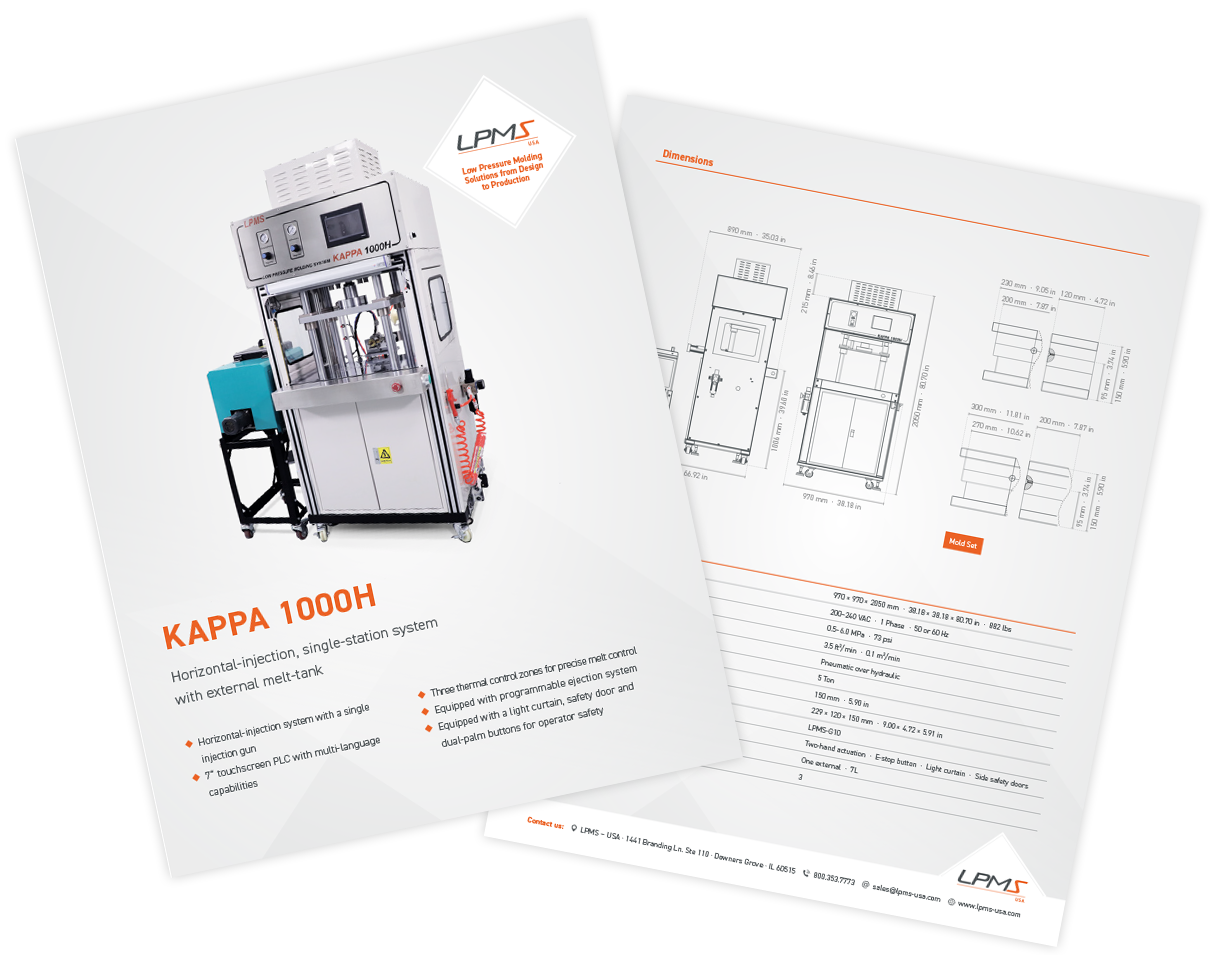

Technical Data Sheet KAPPA 1000H Low Pressure Molding Machine

KAPPA 1000H
Specifications

Machine Size 970 × 970 × 2050 mm · 38.18 × 38.18 × 80.70 in · 882 lbs
Electricity 200–240 VAC · 1 Phase · 50 or 60 Hz · 25 A
Air Input 30–100 psi
Air Required > 90 psi
Clamping Method Pneumatic over hydraulic
Clamping Force 5 Tons
Clamping Stroke 150 mm
Max. Mold Size 320 × 270 × 150 mm
Platen Size 320 × 270 mm
Nozzle LPMS-G10
Safety Features Two-hand actuation · E-stop button · Light curtain · Side safety doors
Melt Tank Quantity / Volume One external · 7L
Temperature Control Zones 3
