Low Pressure Molding Machine BETA 600

The BETA 600 low pressure molding machine offers a horizontal injection system with an integrated melt tank.

Product Features
at a Glance

R

Entry-level

Horizontal-injection system
R

Two thermal control zones

For precise melt control
R

Omron PLC controls

For timing and temperature

R

Operator safety

Equipped, among other things, with light curtains and emergency stop for the safety of the operator
R

Compact mobile design

with integrated melt-tank
R

Touchscreen

7.5“ user interface

R

Single station machine

R

Production volume capabilities

Full Specifications for Low Pressure Molding Machine BETA 600

For more technical details and specifications, please, download the Technical Data Sheet for BETA 600 low pressure molding machine.

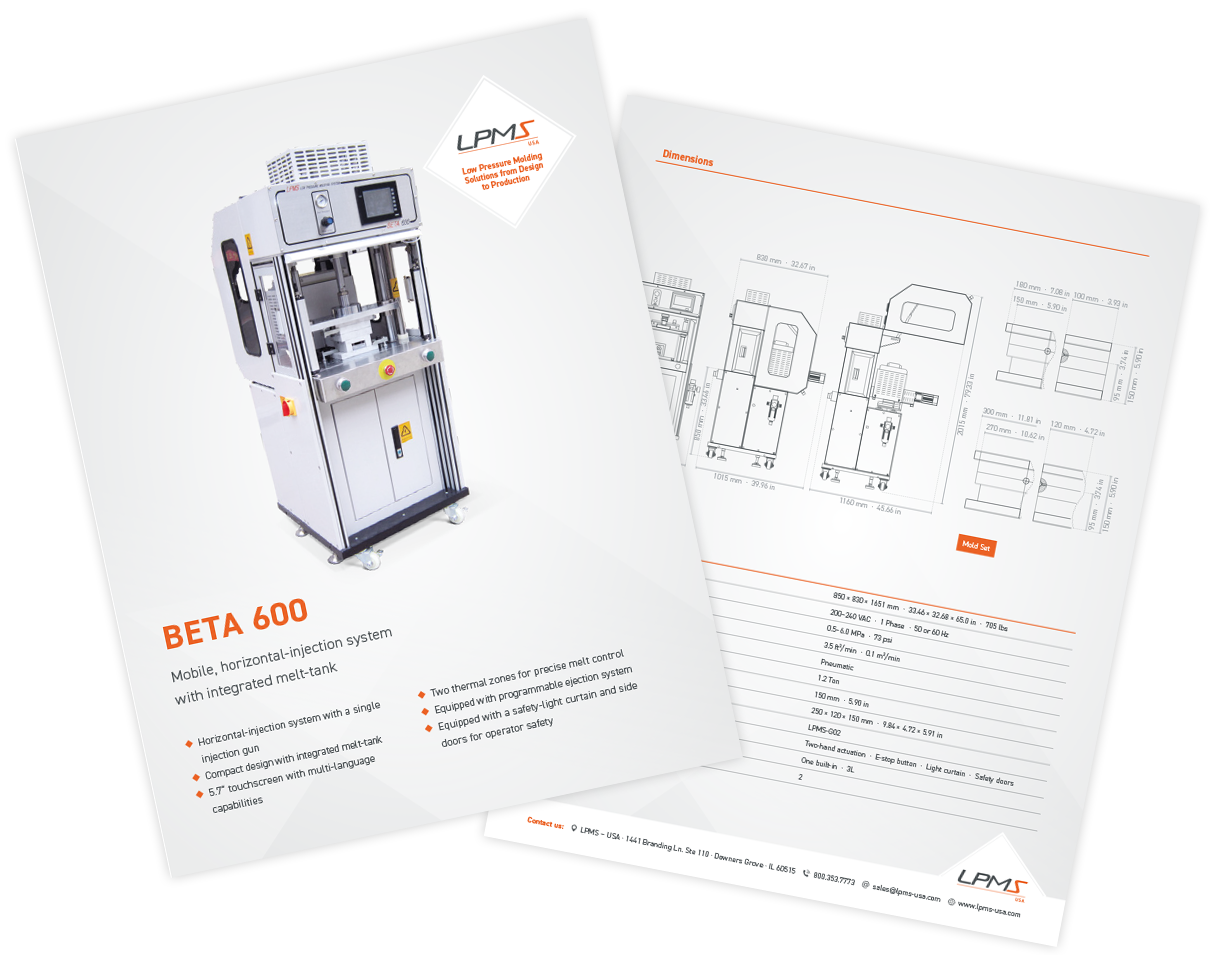

Technical Data Sheet BETA 600 Low Pressure Molding Machine

BETA 600
Specifications

Machine Dimensions 1050 × 780 × 1700 mm · 41.33 × 30.70 × 66.92 in · 683 lbs
Electricity 220 VAC · 1 Phase · 50/60 Hz · 25A
Air Input 90 – 110 PSI
Air Volume 4 CFM
Clamping Method Pneumatic
Clamping Force 1.2 Tons
Clamping Stroke 125 mm Standard · 150 mm Optional
Max. Mold Size 250 × 190 × 150 mm
Safety Features Light Curtains · Emergency Stop · Two Hand Tie Door Interlocks · Lockout Tagout
Melt Tank Quantity / Volume One Integrated 7L Square Standard · 3L Round Optional
Temperature Control Zones 2
