KAPPA

2000H

Low Pressure Molding Machine KAPPA 2000H

The KAPPA 2000H low pressure molding machine offers horizontal-injection, dual-station system with two external melt tanks.

Product Features
at a Glance

R

Two clamping force options

KAPPA 2000 Series features two clamping force options – 1.2 Ton and 5 Ton
R

Thermal control zones

Five thermal control zones for precise melt control
R

Touchscreen

Seven-inch touchscreen, multilanguage operator PLC
R

Ejection systems

For easy parts removal
R

Operator safety

Equipped with light curtains, safety door and dual-palm buttons for operator safety

Full Specifications for Low Pressure Molding Machine KAPPA 2000H

For more technical details and specifications, please, download the Technical Data Sheet for KAPPA 2000H low pressure molding machine.

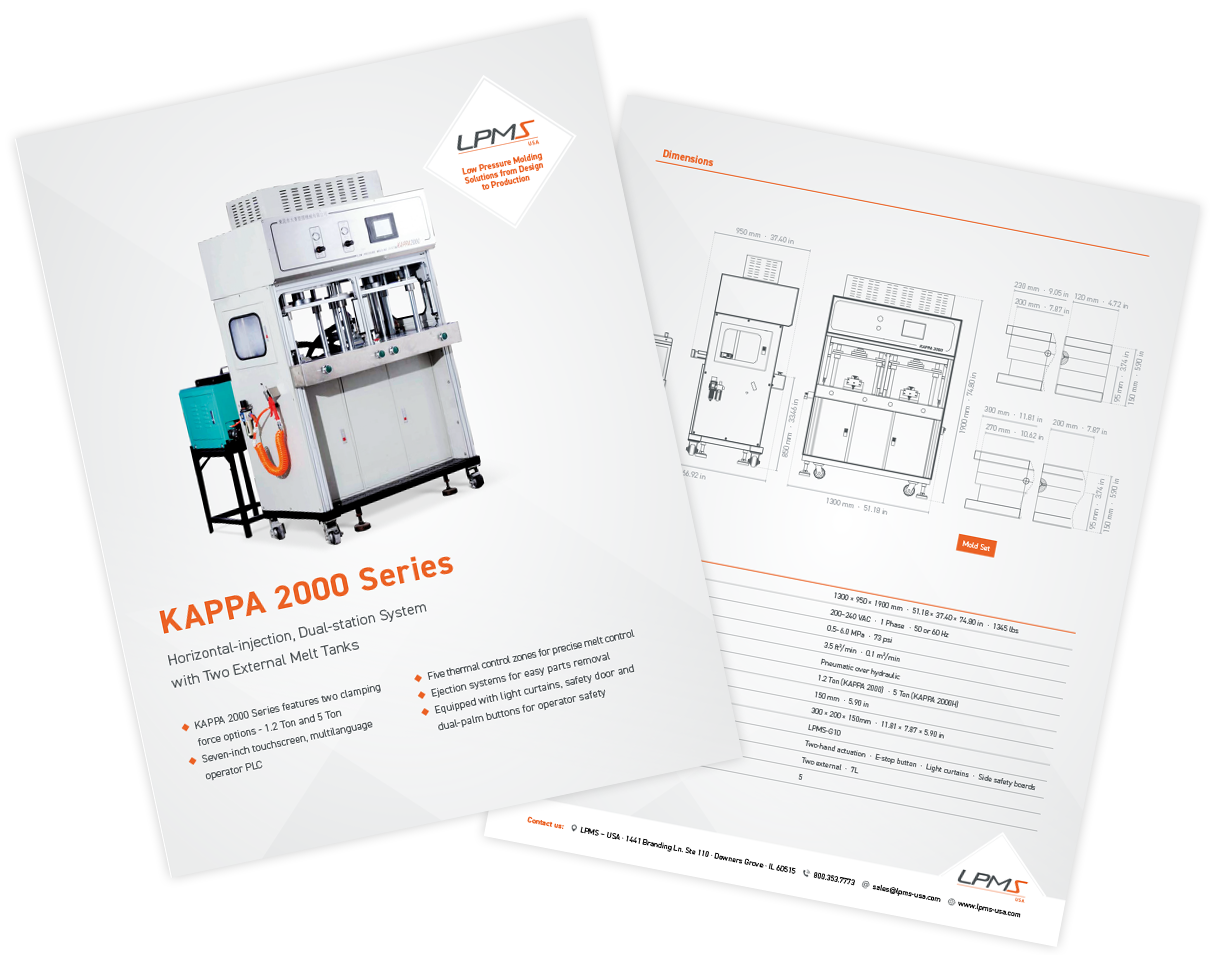

Technical Data Sheet KAPPA 2000 Low Pressure Molding Machine

KAPPA 2000H
Specifications

Machine Size 1300 × 950 × 1900 mm · 51.18 × 37.40 × 74.80 in · 1345 lbs
Electricity 200–240 VAC · 1 Phase · 50 or 60 Hz
Air Pressure 0.5–6.0 MPa · 73 psi
Air Volume 3.5 ft3/min · 0.1 m3/min
Clamping Method Pneumatic over hydraulic
Clamping Force 1.2 Ton (KAPPA 2000) · 5 Ton (KAPPA 2000H)
Clamping Stroke 150 mm · 5.90 in
Max. Mold Size 300 × 200 × 150mm · 11.81 × 7.87 × 5.90 in
Nozzle LPMS-G10
Standard Safety Two-hand actuation · E-stop button · Light curtains · Side safety boards
Melt Tank Quantity / Volume Two external · 7L
Temperature Control Zones 5
