Low Pressure Molding Machine KAPPA 1100H

The KAPPA 1100H low pressure molding machine offers a horizontal injection single work station with built-in tank.

Product Features
at a Glance

R

Air over oil hydraulic cylinder

Gives more clamping force for larger parts
R

Compact design

With 5 liter melting tank integrated into work station
R

User-friendly interface

7“ touch screen with multi-language PLC
R

Two thermal control zones

For precise melt control
R

Equipped with light curtain and dual palm actuators

For operator safety
R

Ejection system

For easy part removal

Full Specifications for Low Pressure Molding Machine KAPPA 1100H

For more technical details and specifications, please, download the Technical Data Sheet for KAPPA 1100H low pressure molding machine.

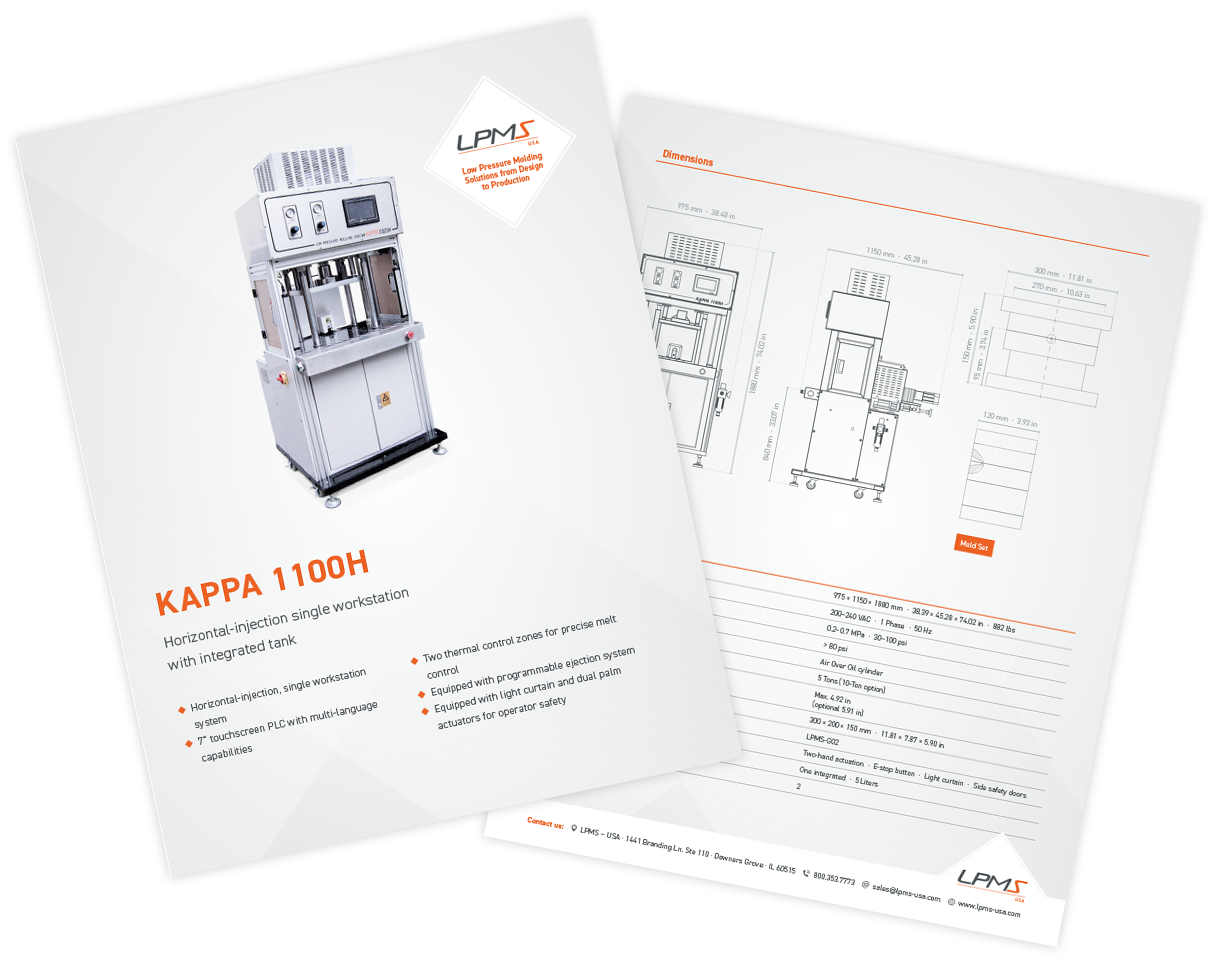

Technical Data Sheet KAPPA 1100H Low Pressure Molding Machine

KAPPA 1100H
Specifications

Machine Size 975 × 1150 × 1880 mm · 38.39 × 45.28 × 74.02 in · 882 lbs
Electricity 200–240 VAC · 1 Phase · 50 Hz · 25 A
Air Input 30–100 psi
Air Required > 90 psi
Clamping Method Air Over Oil cylinder
Clamping Force 5 Tons
Clamping Stroke 150 mm
Max. Mold Size 325 × 270 × 150 mm
Platen Size 325 × 270 mm
Nozzle LPMS-G02
Safety Features Two-hand actuation · E-stop button · Light curtain · Side safety doors
Melt Tank Quantity / Volume One integrated · 7L
Temperature Control Zones 2
