BETA

800H

Low Pressure Molding Machine BETA 800H

In addition to vertical injection, the BETA 800H low pressure molding machine offers a single-station system with an external melt tank.

Product Features
at a Glance

R

Vertical-injection system

Vertical-injection system with a single injection gun
R

Pneumatic-ejection system

Mechanically controlled pneumatic-ejection system
R

Touchscreen PLC

Seven-inch touchscreen PLC with multilanguage capabilities
R

Operator safety

Equipped with a safety-light curtain and dual palm buttons for operator safety
R

Three thermal zones

For precise melt control

Full Specifications for Low Pressure Molding Machine BETA 800H

For more technical details and specifications, please, download the Technical Data Sheet for BETA 800H low pressure molding machine.

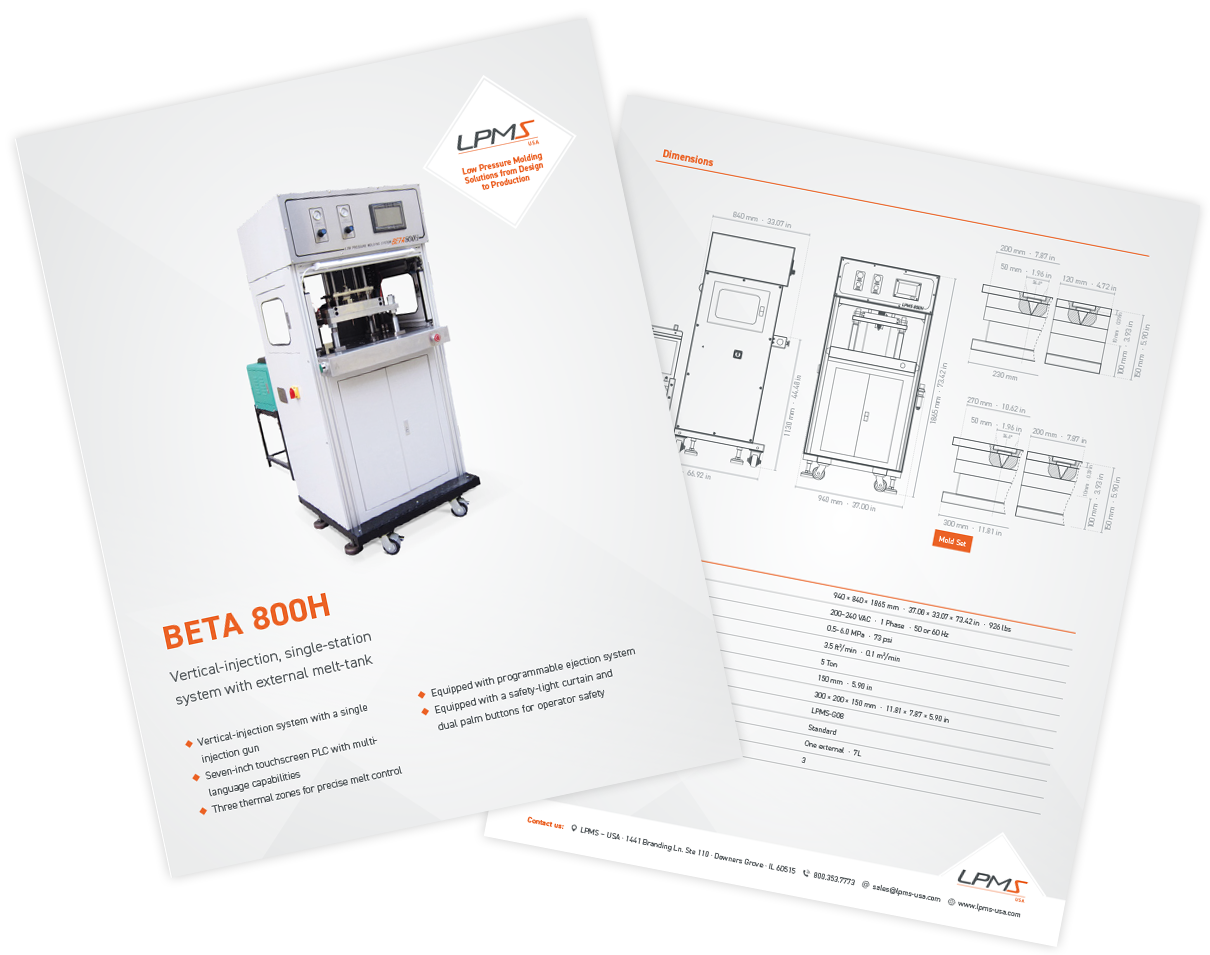

Technical Data Sheet BETA 800H Low Pressure Molding Machine

BETA 800H
Specifications

Machine Size 940 × 840 × 1865 mm · 37.00 × 33.07 × 73.42 in · 926 lbs
Electricity 200–240 VAC · 1 Phase · 50 or 60 Hz · 25 A
Air Input 30–100 psi
Air Required > 90 psi
Clamping Method Pneumatic over hydraulic
Clamping Force 5 Tons
Clamping Stroke 150 mm · 5.90 in
Max. Mold Size 300 × 250 × 150 mm
Platen Size 300 × 250 mm
Nozzle LPMS-G08
Safety Features Two-hand actuation · E-stop button · Light curtain · Side safety doors
Melt Tank Quantity / Volume One external · 7L
Temperature Control Zones 3
