BETA

800

Low Pressure Molding Machine BETA 800

The BETA 800 low pressure molding machine offers a vertical-injection system with built-in melt tank.

Product Features
at a Glance

R

Vertical-injection system

With a single injection gun
R

Three thermal zones

For precise melt control
R

Integrated melt tank

 Compact design with integrated melt tank
R

Pneumatic-ejection system

 Mechanically controlled pneumatic-ejection system
R

Touchscreen PLC

 5.7” touchscreen PLC with multilanguage capabilities
R

Operator safety

 Equipped with a safety-light curtain and dual palm buttons for operator safety

Full Specifications for Low Pressure Molding Machine BETA 800

For more technical details and specifications, please, download the Technical Data Sheet for BETA 800 low pressure molding machine.

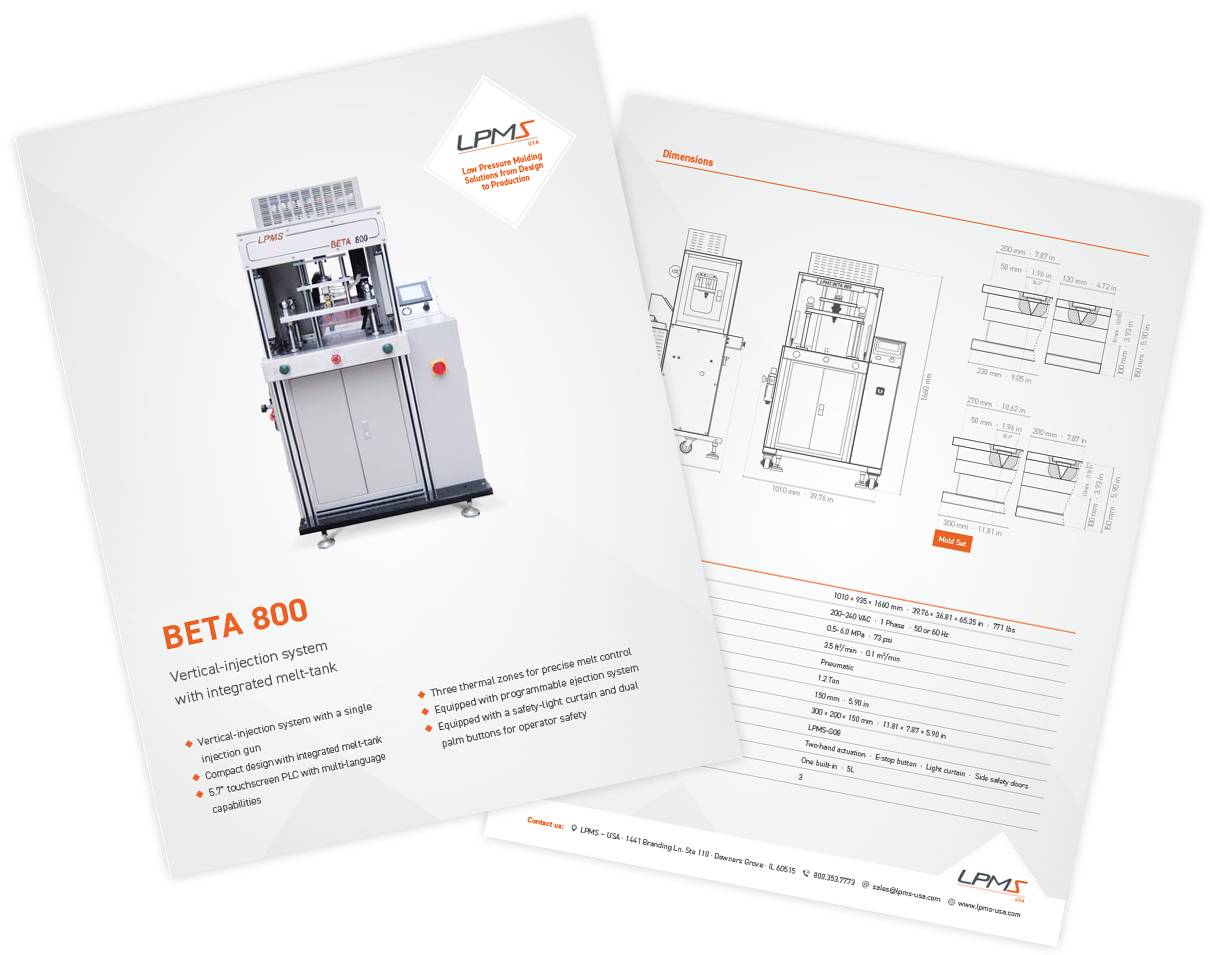

Technical Data Sheet BETA 800 Low Pressure Molding Machine

BETA 800
Specifications

Machine Size 1010 × 935 × 1660 mm · 39.76 × 36.81 × 65.35 in · 771 lbs
Electricity 200–240 VAC · 1 Phase · 50 or 60 Hz · 25 A
Air Input 30–100 psi
Air Required > 90 psi
Clamping Method Pneumatic
Clamping Force 1.2 Tons
Clamping Stroke 125 mm × 150 mm
Max. Mold Size Standard: 305 × 250 × 125 mm · Upgraded Cylinder: 305 × 250 × 150 mm
Platen Size 305 × 250 mm
Nozzle LPMS-G08
Safety Features Two-hand actuation · E-stop button · Light curtain · Side safety doors
Melt Tank Quantity / Volume One integrated · 7L
Temperature Control Zones 3

Product Recommendation

For more information about our equipment, technologies or to find out more how we can help improve your production process, please, feel free to contact us.

Cost Savings Calculator

Our low pressure molding solutions open up great savings opportunities for you. Use our cost savings calculator to identify your individual savings potential.
