BETA

300

Low Pressure Molding Machine BETA 300

The BETA 300 low pressure molding machine offers a compact, horizontal-injection, single-station system with built-in melt tank.

Product Features
at a Glance

R

Horizontal-injection system

Horizontal-injection system with a single-injection gun
R

Moving melt-tank

Moving melt-tank design eliminates the need for a melting hose
R

Integrated melt tank

Compact design with integrated melt tank
R

Safety-light curtain

Equipped with a safety-light curtain and side doors for operator safety
R

Easy maintenance

Designed for easy maintenance
R

Two thermal zones

For precise melt controly

Full Specifications for Low Pressure Molding Machine BETA 300

For more technical details and specifications, please, download the Technical Data Sheet for BETA 300 low pressure molding machine.

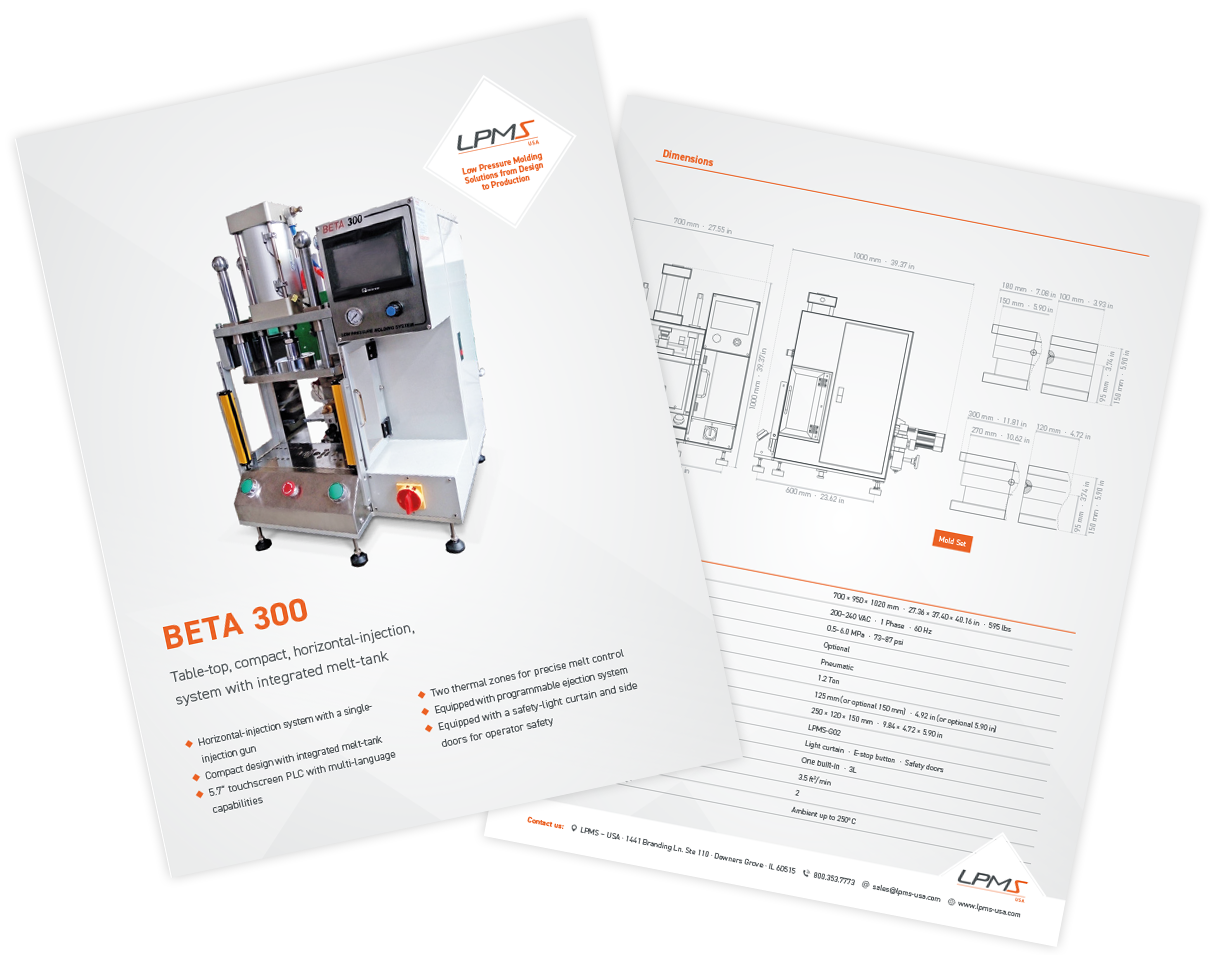

Technical Data Sheet BETA 300 Low Pressure Molding Machine

BETA 300
Specifications

Machine Size 700 × 950 × 1020 mm · 27.36 × 37.40 × 40.16 in · 595 lbs
Electricity 200–240 VAC · 1 Phase · 60 Hz · 25 A
Air Input 30–100 psi
Air Required > 90 psi
Clamping Method Pneumatic
Clamping Force 1.2 Tons
Clamping Stroke 125 mm (or optional 150 mm)
Max. Mold Size Standard: 295 × 170 × 125 mm · Upgraded Cylinder: 295 × 170 × 150 mm
Platen Size 245 × 170 mm
Nozzle LPMS-G02
Safety Features Light curtain · E-stop button · Safety doors
Melt Tank Quantity / Volume One integrated · 3L or 7L
Temperature Control Zones 2
