KAPPA

2000

KAPPA 2000

Horizontal-injection, Dual-station System with Two External Melt Tanks

Product Features
at a Glance

R

High-volume melt tanks

Horizontal-injection, dual-independent work-stations with external high-volume melt tanks

R

Ejection system

For easy part removal

R

Touchscreen

 5.7” touchscreen, multilanguage operator PLC

R

Post die set

 Four post die set for large parts

R

Thermal control zones

Five thermal control zones for precise melt control

R

Operator safety

 Equipped with light curtains, safety door and dual-palm buttons for operator safety

Full Specifications for KAPPA 2000

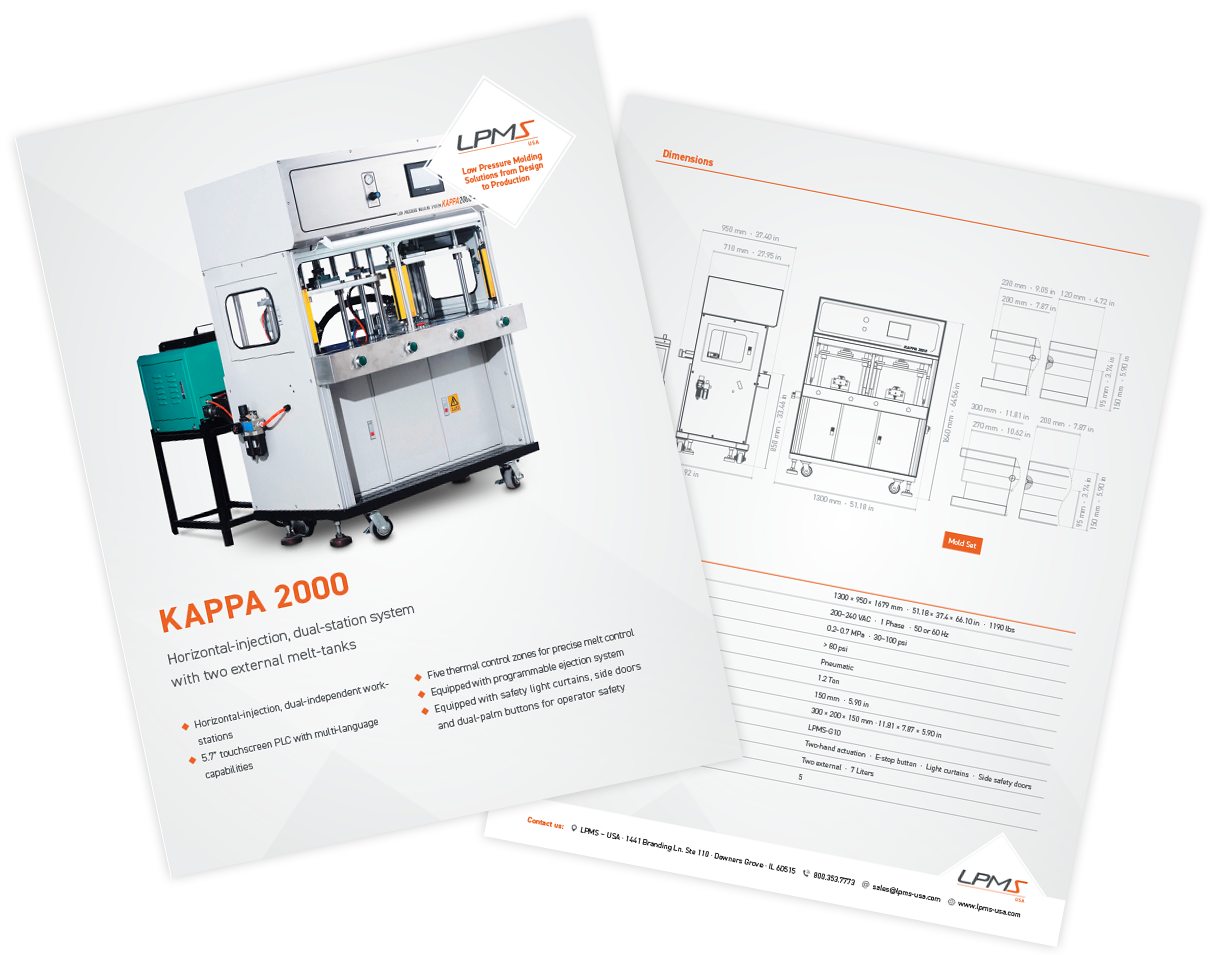

For more technical details and specifications, please, download the Technical Data Sheet for KAPPA 2000.

KAPPA 2000
Specifications

Machine Size 1300 × 950 × 1679 mm · 51.18 × 37.4 × 66.10 in · 1190 lbs
Electricity 200–240 VAC · 1 Phase · 50 or 60 Hz
Air Pressure 0.5–6.0 MPa · 73 psi
Air Volume 3.5 ft3/min · 0.1 m3/min
Clamping Method Pneumatic
Clamping Force 1.2 Ton
Clamping Stroke 150 mm · 5.90 in
Max. Mold Size 300 × 200 × 150 mm · 11.81 × 7.87 × 5.90 in
Nozzle LPMS-G10
Standard Safety Two-hand actuation · E-stop button · Light curtains · Side safety doors
Melt Tank Quantity / Volume Two external · 7L
Temperature Control Zones 5
