KAPPA 1000H
Horizontal-injection, Single-station System with External Melt Tank
Product Features
at a Glance
High-volume melt tank
Horizontal-injection, single-workstation system with external high-volume melt tank
Thermal control zones
Three thermal control zones for precise melt control
Touchscreen
Seven-inch touchscreen, multilanguage operator PLC
Ejection system
For easy part removal
Operator safety
Equipped with a light curtain, safety door and dual-palm buttons for operator safety
Full Specifications for KAPPA 1000H

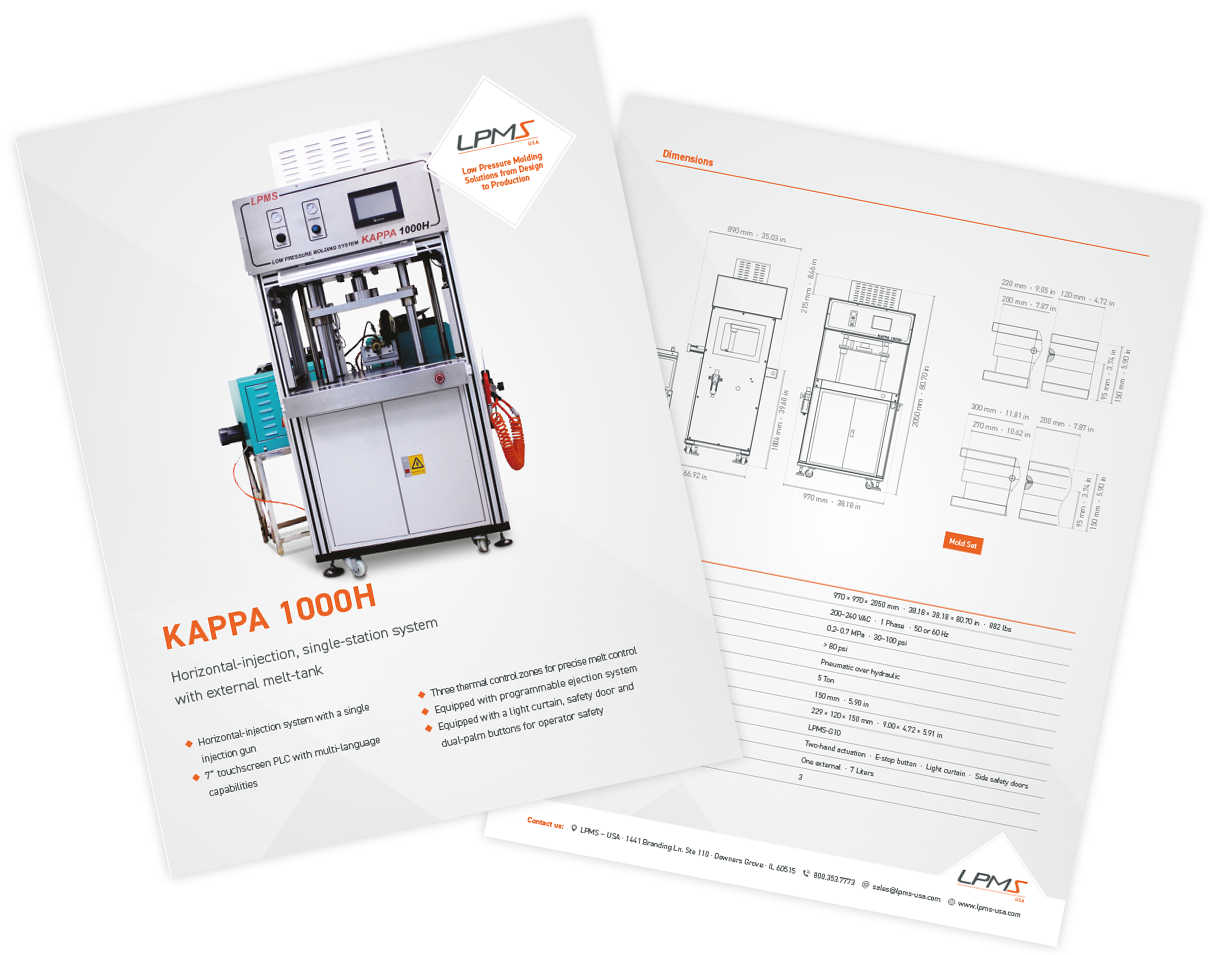

For more technical details and specifications, please, download the Technical Data Sheet for KAPPA 1000H.
KAPPA 1000H
Specifications
| Machine Size | 970 × 970 × 2050 mm · 38.18 × 38.18 × 80.70 in · 882 lbs |
| Electricity | 200–240 VAC · 1 Phase · 50 or 60 Hz |
| Air Pressure | 0.5–6.0 MPa · 73 psi |
| Air Volume | 3.5 ft3/min · 0.1 m3/min |
| Clamping Method | Pneumatic over hydraulic |
| Clamping Force | 5 Ton |
| Clamping Stroke | 150 mm · 5.90 in |
| Max. Mold Size | 229 × 120 × 150 mm · 9.00 × 4.72 × 5.91 in |
| Nozzle | LPMS-G10 |
| Standard Safety | Two-hand actuation · E-stop button · Light curtain · Side safety doors |
| Melt Tank Quantity / Volume | One external · 7L |
| Temperature Control Zones | 3 |
