BETA 800H
Vertical-injection, Single-station System with External Melt Tank
Product Features
at a Glance
Vertical-injection system
Vertical-injection system with a single injection gun
Pneumatic-ejection system
Mechanically controlled pneumatic-ejection system
Touchscreen PLC
Seven-inch touchscreen PLC with multilanguage capabilities
Operator safety
Equipped with a safety-light curtain and dual palm buttons for operator safety
Three thermal zones
For precise melt control
Full Specifications for BETA 800H

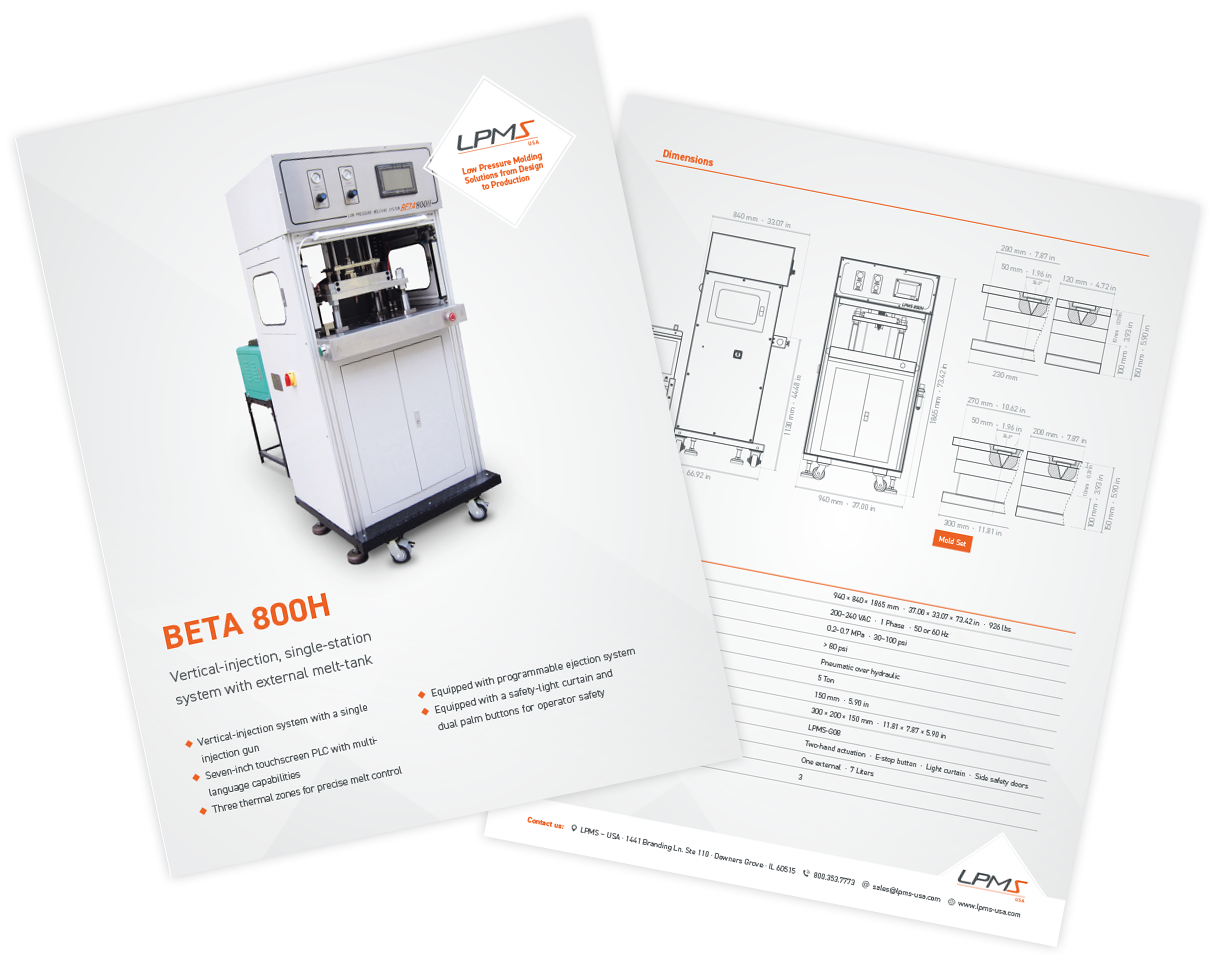

For more technical details and specifications, please, download the Technical Data Sheet for BETA 800H.
BETA 800H
Specifications
| Machine Size | 940 × 840 × 1865 mm · 37.00 × 33.07 × 73.42 in · 926 lbs |
| Electricity | 200–240 VAC · 1 Phase · 50 or 60 Hz |
| Air Pressure | 0.5–6.0 MPa · 73 psi |
| Air Volume | 3.5 ft3/min · 0.1 m3/min |
| Clamping Force | 5 Ton |
| Clamping Stroke | 150 mm · 5.90 in |
| Max. Mold Size | 300 × 200 × 150 mm · 11.81 × 7.87 × 5.90 in |
| Nozzle | LPMS-G08 |
| Light Curtain | Standard |
| Melt Tank Quantity / Volume | One external · 7L |
| Temperature Control Zones | 3 |
Product Recommendation
For more information about our equipment, technologies or to find out more how we can help improve your production process, please, feel free to contact us.
Cost Savings Calculator
Our low pressure molding solutions open up great savings opportunities for you. Use our cost savings calculator to identify your individual savings potential.
