BETA

800

BETA 800

Vertical-injection System with Built-in Melt Tank

Product Features
at a Glance

R

Vertical-injection system

With a single injection gun

R

Three thermal zones

For precise melt control

R

Integrated melt tank

 Compact design with integrated melt tank

R

Pneumatic-ejection system

 Mechanically controlled pneumatic-ejection system

R

Touchscreen PLC

 5.7” touchscreen PLC with multilanguage capabilities

R

Operator safety

 Equipped with a safety-light curtain and dual palm buttons for operator safety

Full Specifications for BETA 800

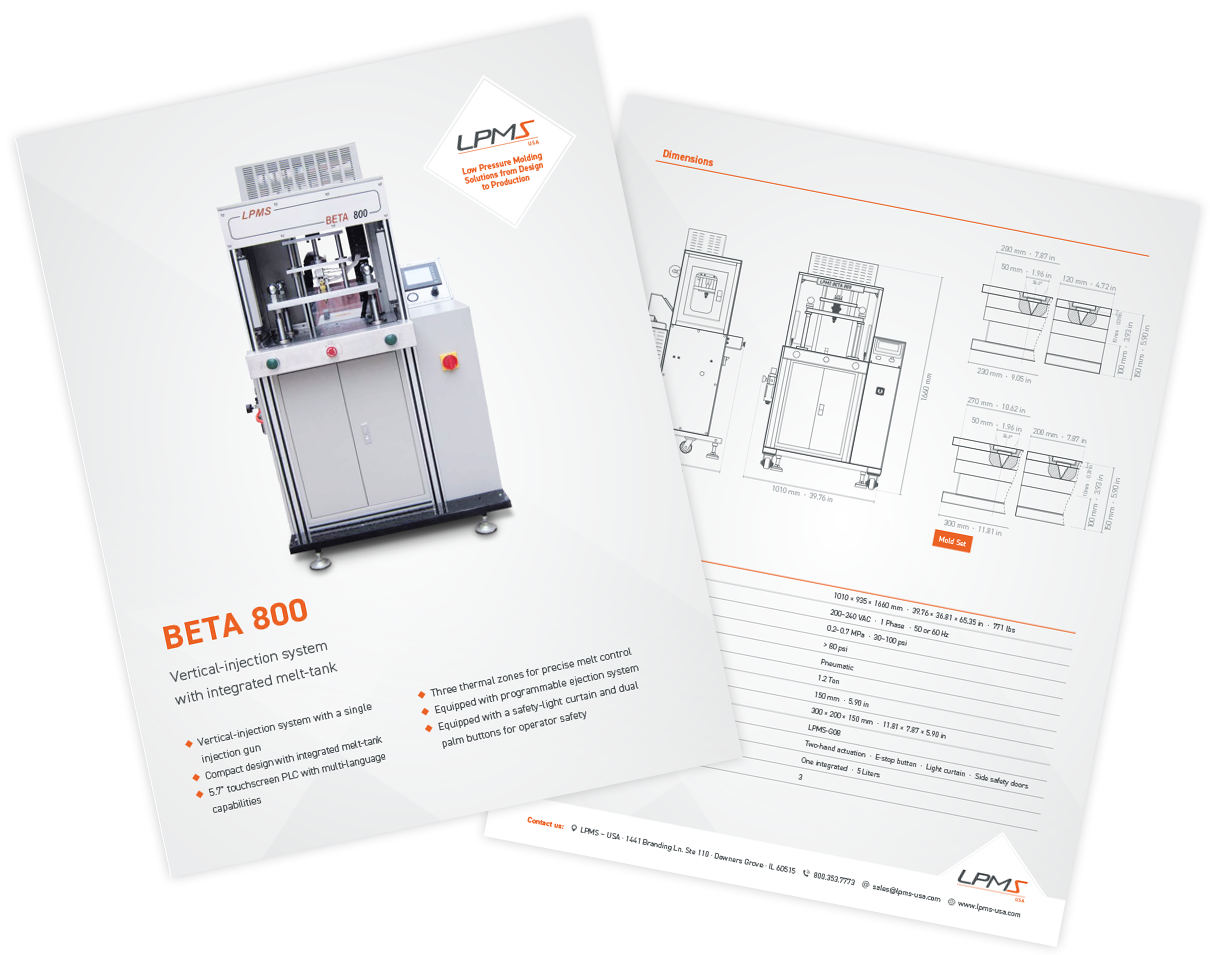

For more technical details and specifications, please, download the Technical Data Sheet for BETA 800.

BETA 800
Specifications

Machine Size 1010 × 935 × 1660 mm · 39.76 × 36.81 × 65.35 in · 771 lbs
Electricity 200–240 VAC · 1 Phase · 50 or 60 Hz
Air Pressure 0.5–6.0 MPa · 73 psi
Air Volume 3.5 ft3/min · 0.1 m3/min
Clamping Method Pneumatic
Clamping Force 1.2 Ton
Clamping Stroke 150 mm · 5.90 in
Max. Mold Size 300 × 200 × 150 mm · 11.81 × 7.87 × 5.90 in
Nozzle LPMS-G08
Standard Safety Two-hand actuation · E-stop button · Light curtain · Side safety doors
Melt Tank Quantity / Volume One built-in · 5L
Temperature Control Zones 3
