BETA

370

BETA 370

Horizontal Injection Shuttle Table

Product Features
at a Glance

R

Compact Machine

R

Shuttle table design

One upper mold serves two bottom molds which increases throughput and is safe for workers

R

7 liter melting tank

R

Hoseless system

R

Injection pressure range 1~50 kg/cm²

Controlled by a pneumatic safety valve

R

Gear pump is made of hard-wearing material

Which is stable, maximum is 5.8 g/s hardened gear pump with a maximum injection speed of 5.8 g/s

R

Modular injection system

For ease of service

R

Two temperature control zones

Work independently

R

Light curtain and photo-electric actuators

Protect workers during operation

R

Multi-size base

For easy mold set installation

R

Equipped with programmable ejection system

Full Specifications for BETA 370

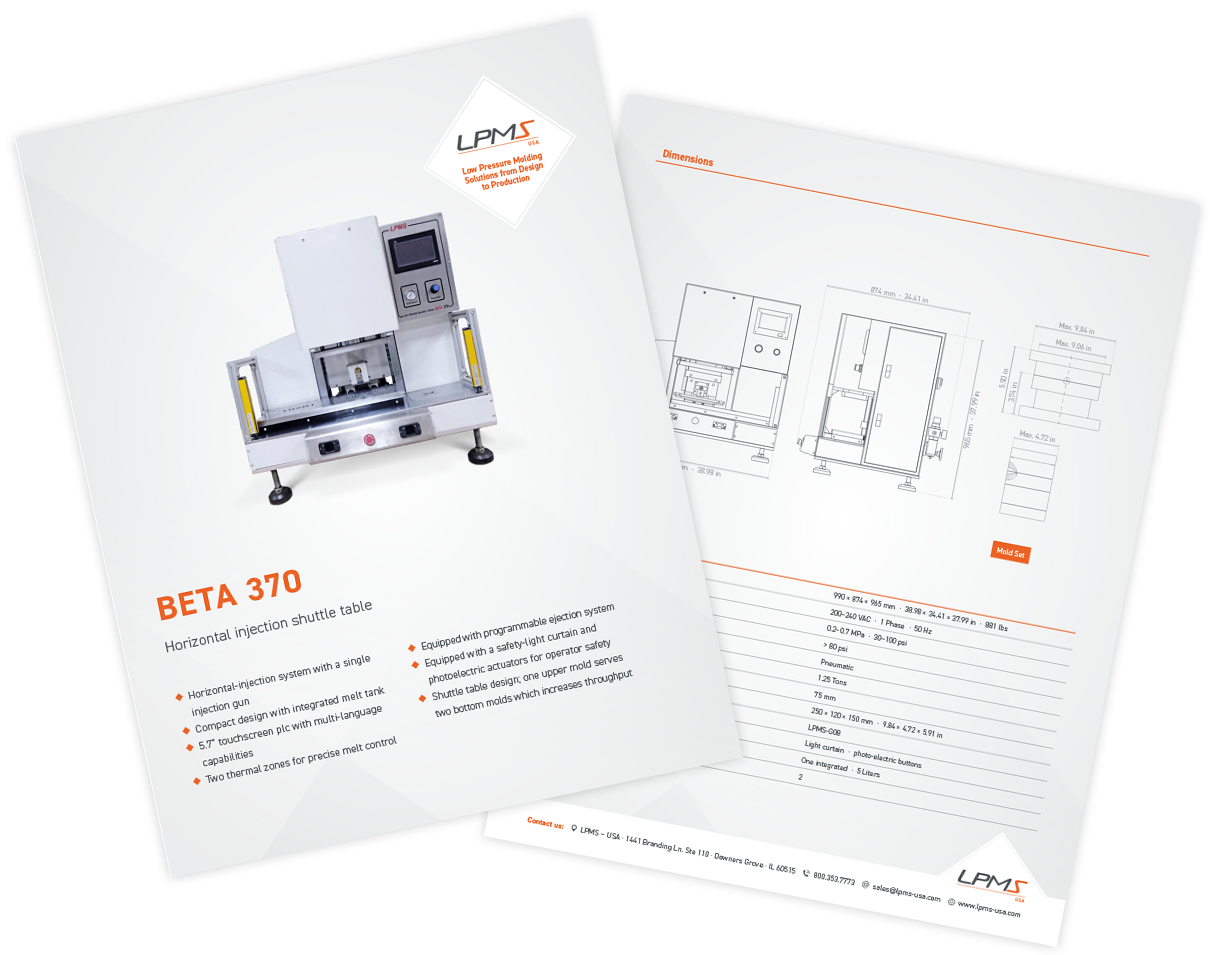

For more technical details and specifications, please, download the Technical Data Sheet for BETA 370.

BETA 370
Specifications

Machine Size 990 × 874 × 965 mm · 38.98 × 34.41 × 37.99 in · 881 lbs
Electricity 200–240 VAC · 1 Phase · 50 Hz
Air Pressure 0.5 MPa · 73 psi
Air Volume 3.5 ft3/min · 0.1 m3/min
Clamping Method Air cylinder
Clamping Force 1.25 Tons
Clamping Stroke 75 mm
Max. Mold Size 250 × 120 × 150 mm · 9.84 × 4.72 × 5.91 in
Nozzle LPMS-G08
Standard Safety Light curtain · photo-electricity sensor buttons
Melt Tank Quantity / Volume 7L × 1
Temperature Control Zones 2
Temperature Control Range Ambient up to 250o C
