BETA 300

Compact, Horizontal-injection, Single-station System with Built-in Melt Tank

Product Features
at a Glance


Horizontal-injection system

Horizontal-injection system with a single-injection gun


Moving melt-tank

Moving melt-tank design eliminates the need for a melting hose


Integrated melt tank

Compact design with integrated melt tank


Safety-light curtain

Equipped with a safety-light curtain and side doors for operator safety


Easy maintenance

Designed for easy maintenance


Two thermal zones

For precise melt controly

Full Specifications for BETA 300

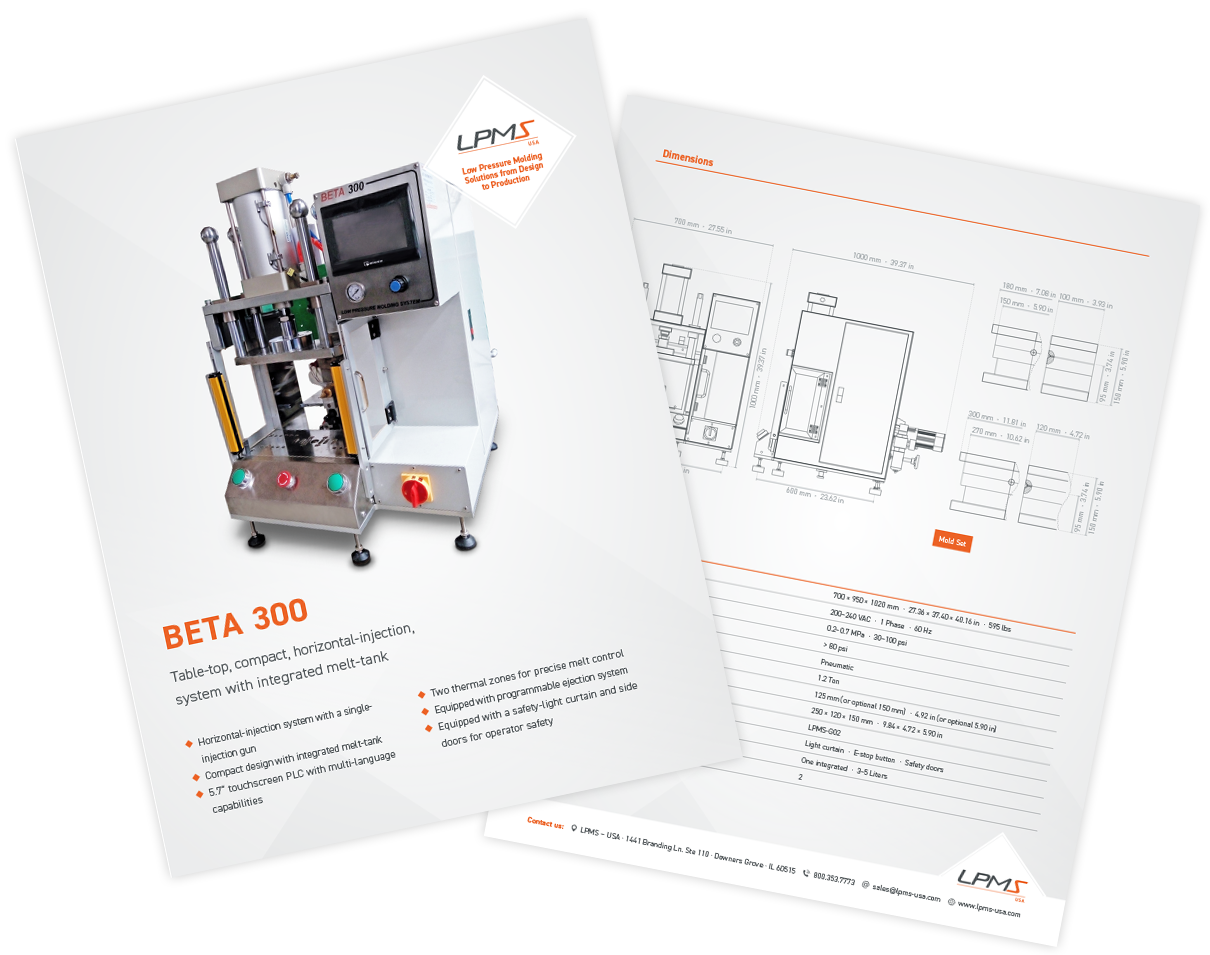

For more technical details and specifications, please, download the Technical Data Sheet for BETA 300.

BETA 300

Machine Size 700 × 950 × 1020 mm · 27.36 × 37.40 × 40.16 in · 595 lbs
Electricity 200–240 VAC · 1 Phase · 60 Hz
Air Pressure 0.5–6.0 MPa · 73–87 psi
Autofeed Optional
Clamping Method Pneumatic
Clamping Force 1.2 Ton
Clamping Stroke 125 mm (or optional 150 mm) · 4.92 in (or optional 5.90 in)
Max. Mold Size 250 × 120 × 150 mm · 9.84 × 4.72 × 5.90 in
Nozzle LPMS-G02
Safety Features Light curtain · E-stop button · Safety doors
Melt Tank Quantity / Volume One built-in · 3L
Air Consumption 3.5 ft3/min
Temperature Control Zones 2
Temperature Control Range Ambient up to 250o C
