KAPPA

1000

KAPPA 1000

Horizontal-injection, Single-station System with External Melt Tank

Product Features
at a Glance

R

Single-workstation system

Horizontal-injection, single-workstation system

R

Ejection system

For easy part removal

R

Touchscreen

 Seven-inch touchscreen, multilanguage operator PLC

R

External melt tank

External high-volume melt tank

R

Thermal control zones

Three thermal control zones for precise melt control

R

Operator safety

Equipped with a light curtain, safety door and dual-palm buttons for operator safety

Full Specifications for KAPPA 1000

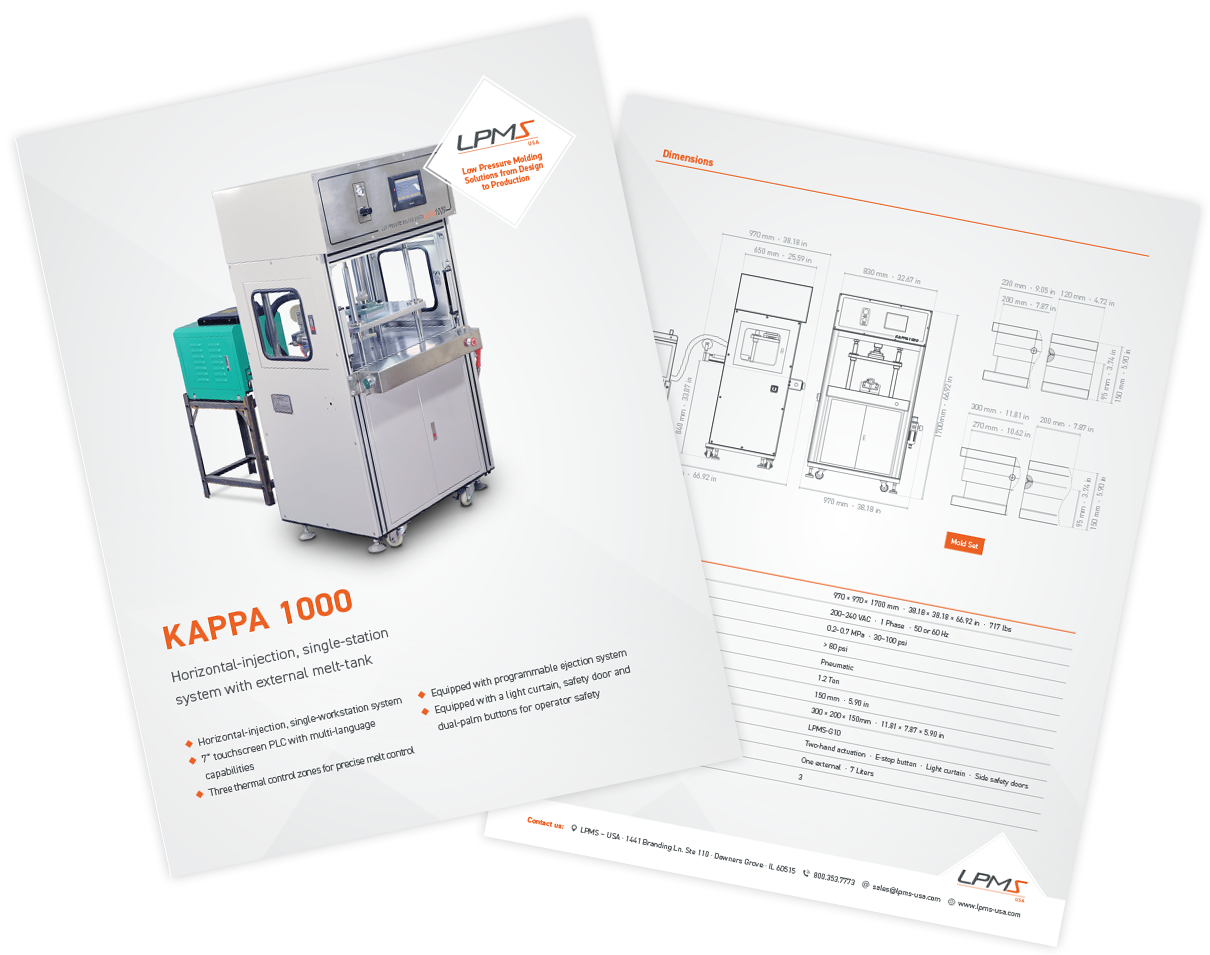

For more technical details and specifications, please, download the Technical Data Sheet for KAPPA 1000.

KAPPA 1000
Specifications

Machine Size 970 × 970 × 1700 mm · 38.18 × 38.18 × 66.92 in · 717 lbs
Electricity 200–240 VAC · 1 Phase · 50 or 60 Hz
Air Pressure 0.5–6.0 MPa · 73 psi
Air Volume 3.5 ft3/min · 0.1 m3/min
Clamping Method Pneumatic
Clamping Force 1.2 Ton
Clamping Stroke 150 mm · 5.90 in
Max. Mold Size 300 × 200 × 150mm · 11.81 × 7.87 × 5.90 in
Nozzle LPMS-G10
Standard Safety Two-hand actuation · E-stop button · Light curtain · Side safety doors
Melt Tank Quantity / Volume One external · 7L
Temperature Control Zones 3
