BETA

800HMG

BETA 800HMG

Vertical-injection, Dual-gun System with Two External Melt Tanks

Product Features
at a Glance

R

Touchscreen

Seven-inch touchscreen, multilanguage operator PLC

R

High-volume melt tanks

 Two separate high-volume melt tanks

R

Thermal control zones

 Five thermal control zones for precise melt control

R

Post die set

Four post die set for large parts

R

Injection guns

 Two independent injection guns

R

Operator safety

 Equipped with a light curtain, safety door and dual-palm buttons for operator safety

Full Specifications for BETA 800HMG

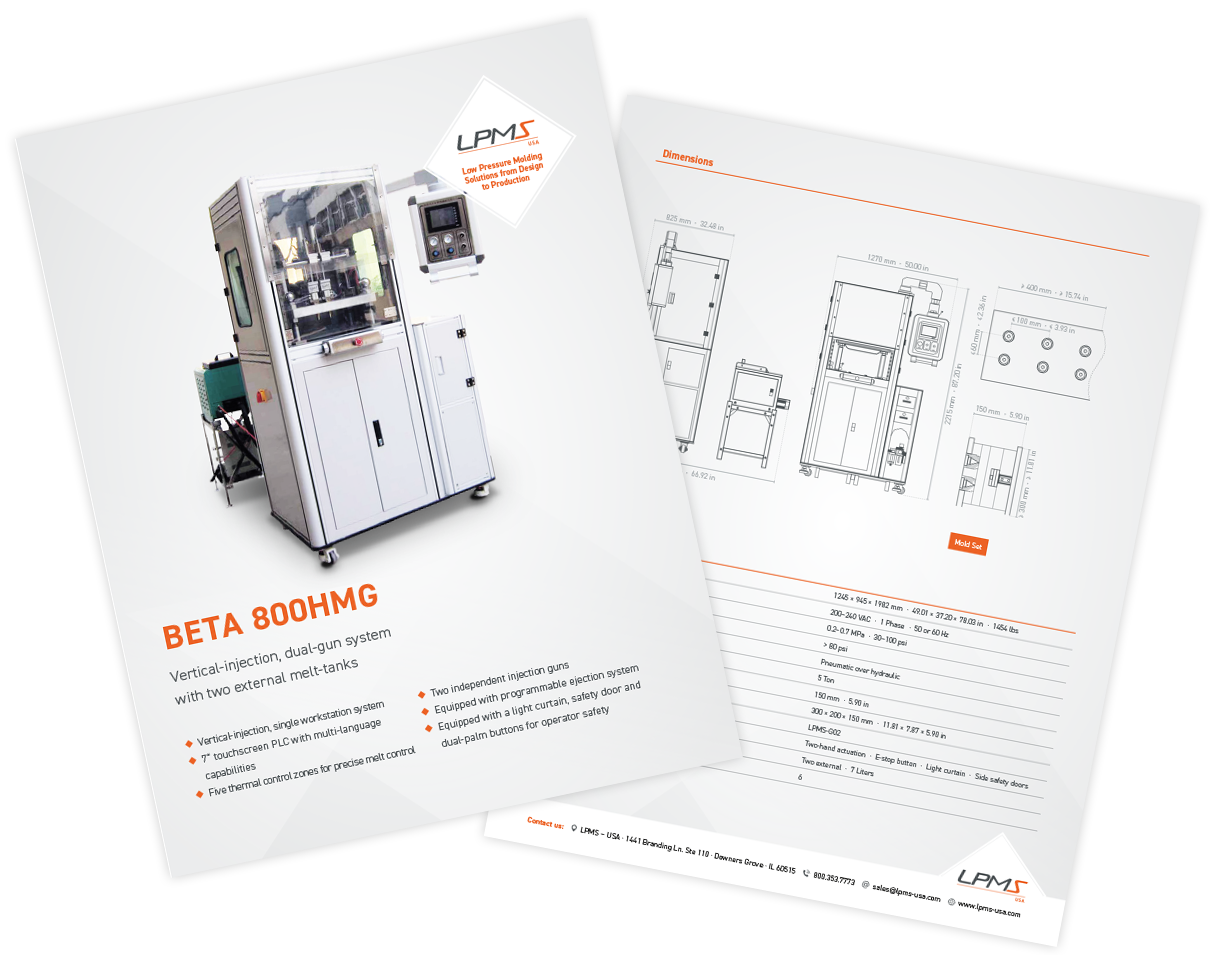

For more technical details and specifications, please, download the Technical Data Sheet for BETA 800HMG.

BETA 800HMG
Specifications

Machine Size 1245 × 945 × 1982 mm · 49.01 × 37.20 × 78.03 in · 1454 lbs
Electricity 200–240 VAC · 1 Phase · 50 or 60 Hz
Air Pressure 0.5–6.0 MPa · 73 psi
Air Volume 3.5 ft3/min · 0.1 m3/min
Clamping Method Pneumatic over hydraulic
Clamping Force 5 Ton
Clamping Stroke 150 mm · 5.90 in
Max. Mold Size 300 × 200 × 150 mm · 11.81 × 7.87 × 5.90 in
Nozzle LPMS-G02
Standard Safety Two-hand actuation · E-stop button · Light curtain · Side safety doors
Melt Tank Quantity / Volume Two external · 7L
Temperature Control Zones 6
